Polaris Vega® ST

Enable new OEM surgical instrument tracking and navigation applications with this versatile optical measurement solution that can be used in almost any operative environment.

Our Versatile Optical Tracker for Diverse OEM Surgical Applications

The Polaris Vega® ST is a versatile optical tracker that can provide trusted measurements in an array of OEM-supported surgical applications, delivering accurate and reliable 3D tracking data. Tracking is achieved via navigation markers that can be attached to OEM surgical instruments such as probes, shavers, awls, drills, microdebriders, and more.

Exclusive to the Polaris Vega ST is an available Radiation Hardening option. The Radiation Hardening option protects the optical tracker from gamma and neutron radiation by way of a shielded processor and modified memory management. This extra protection allows the Polaris Vega ST to be safely integrated into OEM surgical navigation systems and workflows that are used in radiation therapy suites.

More customization options are available to enhance system utility and flexibility. The Positioning Laser assists with positioning the optical tracker and/or surgical equipment within the measurement volume. The Extended Pyramid Volume nearly doubles the measurement volume, which benefits procedures that require a clear view of several surgical instruments at once.

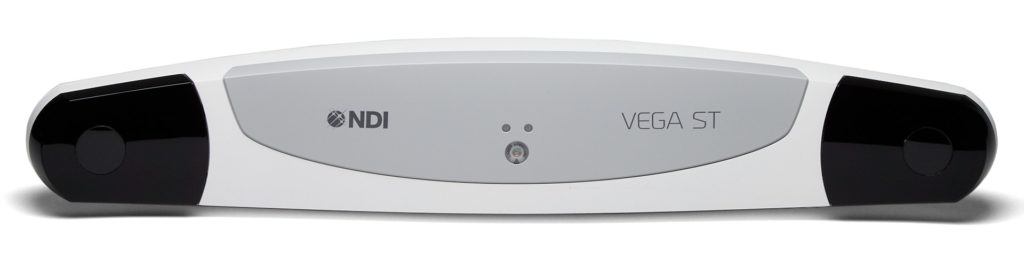

Polaris Vega ST

Exceptional Measurement Accuracy

The Polaris Vega ST delivers high volumetric accuracy to 0.12 mm RMS with low noise. Track passive spheres attached to tools with confidence; hardware characterization and factory calibration optimize accuracy for measurements that are highly repeatable and reliable.

Volumetric Accuracy1,2 RMSPyramid Volume: 0.12 mm
Extended Pyramid: 0.15 mm
95% Confidence Interval1,2Pyramid Volume: 0.20 mm
Extended Pyramid: 0.30 mm

Robust Hardware Design

The Polaris Vega ST can include optional radiation hardening to maintain accurate and reliable performance in harsh environments, such as those found in radiation therapy suites. Consistent operation in variable room conditions add to product robustness.

Measurement Rates 20, 30, 60 Hz
Average Latency< 16 ms (typical) at 60Hz
Measurement VolumesPyramid, Extended Pyramid (optional)

Streamlined Tool Design

The Polaris Vega ST has a built-in API and available software to facilitate tool development and accelerate integration into OEM and end-user software applications. The NDI ToolBox software includes utilities for ongoing system diagnostics and maintenance.

Tool Types Passive, Active Wireless
Maximum Number of ToolsLoad up to 25 tools (maximum of 6 active wireless)
Maximum Number of Markers per Tool 6 single-face/20 multi-face

Ethernet Connectivity

The Polaris Vega ST comes with Gigabit Ethernet capable of streaming high-speed tracking data back to the OEM host application. The Ethernet connection also provides power to the Vega and allows for greater flexibility and interoperability of equipment within the operative space

Data Communication Gigabit Ethernet
Maximum Number of ToolsNetwork Synchronization
Data/Power Interface Ethernet, RJ45

Polaris Vega ST Measurement Volume

Polaris Vicra Measurement Volume
Polaris Vega VT with Probe

Polaris Vega VT

Learn about the industry’s first optical tracker to combine live HD video and infrared tracking.

Polaris Vega XT

Learn about our optical tracker that can be seamlessly integrated with OEMs’s robot-assisted surgical procedures.

Polaris Vega XT

Download Our 13-Page Guide To Learn How Optical Tracking:

  • Helps to visualize and accurately track instruments within a large volume.
  • Enables OEM solution providers to integrate tracking into their workflows to improve patient outcomes.
  • Supports integration with robotic-assisted systems and augmented reality applications.
MC – Optical Education Guide

Legal Disclaimer
NDI tracking and measurement products are general metrology components that can be integrated into customer products, research experiments, and/or as components of medical devices that require precision measurement and tracking. While NDI components and technology can be integrated into original equipment manufacturer (OEM) medical devices, they are not specifically intended for a given application and, as such, have not been developed or manufactured in accordance with medical device standards. It remains the responsibility of the OEM customer or end-user to determine and test the suitability of NDI components and technology for their intended use, including performing any required ethics approval, verification, and validation required to demonstrate suitability and compliance. System-level testing, certification, and validation are the responsibility of the original equipment manufacturer or the applicable end-user and should be completed prior to the use of NDI products or technologies in any application.

1 Based on a single marker stepped through more than 900 positions throughout the measurement volume using the mean of 30 samples at each position at 20°C
2 Accuracy stated based on overall volume
