3D Guidance® Sensors

3D Guidance® Sensors Five different 6DOF sensor options support flexible integration into numerous OEM instruments and tracking applications.

Sensors Come Fully Assembled and Ready for Use

3D Guidance® sensors come in many sizes, from a larger reference sensor that consists of an 8 mm square cross-section, to a 0.56 mm diameter cylindrical sensor for use in the smallest tools. The sensors can be integrated into diverse OEM medical instruments such as ultrasound probes, catheters, epidural and biopsy needles, and more. Only 6DOF sensors are available; however, they are re-usable.

The 3D Guidance electronics unit can simultaneously track up to four sensors and supports interchangeable sensor sizes. 3D Guidance sensors come pre-wired with connectors and pre-characterized for immediate use; no assembly is required.

With the 3D Guidance solution, the sensor dictates the size of the measurement volume, whereby the larger the sensor, the larger the measurement volume. (This differs from our Aurora solution, in which the field generator determines the size of the measurement volume.) The 3D Guidance solution maintains a standard positional accuracy of 1.4 mm RMS and orientation 0.5° RMS, regardless of the sensor or transmitter that is used.

3D Guidance 6DOF Sensors

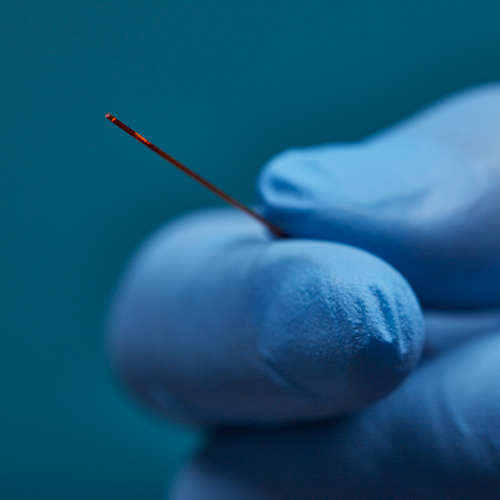

3DG Model 55 Sensor3D Guidance Model 55 Sensor
Dimensions: ø0.56 mm x 12 mm length
Cable: ø3.8 mm x 2.5 m length
Our smallest diameter sensor, which embeds into very small diameter tools. This sensor has the shortest tracking range.

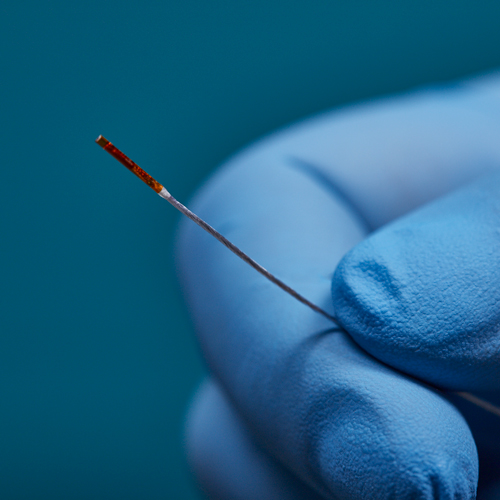

3DG Model 90 Sensor3D Guidance Model 90 Sensor
Dimensions: ø0.9 mm x 7.25 mm length
Cable: ø0.6 mm x 3.3 m length
Our most versatile small sensor; its sub-millimetre size allows for integration with many OEM medical instruments while providing an adequate tracking range.

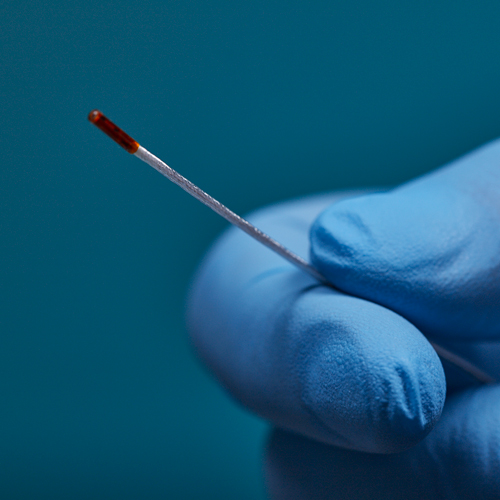

3DG Model 130 Sensor3D Guidance Model 130 Sensor
Dimensions: ø1.5 mm x 7.7 mm length
Cable: ø1.2 mm x 3.3 m length
Our general-purpose sensor, which provides a good balance between sensor size, durability, and tracking range.

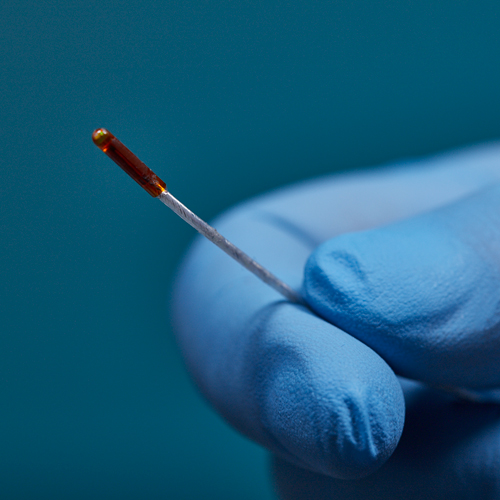

3DG Model 180 Sensor3D Guidance Model 180 Sensor
Dimensions: ø2.0 mm x 9.9 mm length
Cable: ø1.2 mm x 3.3 m length
Our most cost-effective sensor, which provides the best value in terms of sensor size, tracking range, and price.

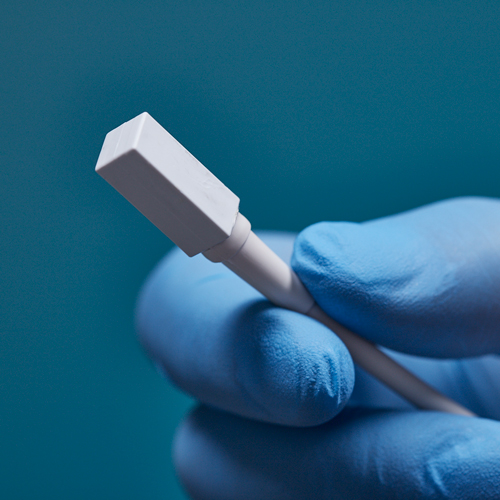

3DG Model 800 Sensor3D Guidance Model 800 Sensor
Dimensions: 7.9 mm x 8 mm x 19.8 mm
Cable: ø3.8 mm x 3.3 m length
Our largest, and most robust sensor, which is commonly used as a reference sensor. This sensor has the longest tracking range.

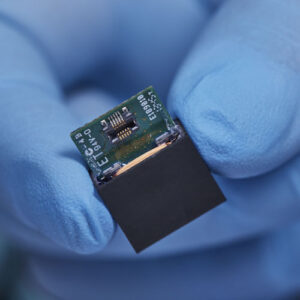

3DG Model 800 Sensor3D Guidance Model 1525 Sensor
Dimensions: 13.7 mm L x 7.4 mm W
Cable: none
Designed to be integrated inside of instruments (ex: ultrasound probes)
How EM Works 3DG needle

Learn how Sensors work as part of Electromagnetic Tracking Technology

Download our 12-page Education Guide to learn how you can integrate Electromagnetic Tracking Technology into your OEM medical devices to:

  • Navigate instruments safely and reliably through complex anatomy.
  • Target small treatment areas with
    sub-millimeter accuracy and precision.
  • Visualize real-time position as well as orientation of an instrument.
  • Track instruments even when they
    are out of sight.
  • Embed micro sensors into flexible and
    rigid instruments.
MC – EM Education Guide
EM Education Guide
