Polaris Vega®
Our advanced optical measurement solution, with three models of optical trackers that deliver unrivalled measurement performance and versatility for emerging OEM surgical navigation applications.
Polaris Vega®
Our advanced optical measurement solution, with three models of optical trackers that deliver unrivalled measurement performance and versatility for emerging OEM surgical navigation applications.
Optical Measurement that Drives Breakthroughs in Surgical Navigation
The Polaris Vega® optical measurement solution has three models of optical trackers that can be integrated into the workflow of OEM surgical navigation systems: the Polaris Vega XT, Polaris Vega VT, and Polaris Vega ST. All three Polaris Vega models share a common optical measurement technology platform, using near-infrared (IR) light to track the real-time positions of OEM surgical instruments via attached navigation markers. Tracking occurs wirelessly over a large measurement volume.
All Polaris Vega models are engineered and built to sub-millimetre measurement accuracy and reliability specifications, delivering trusted tracking performance for the most complex surgical navigation procedures. However, no two tracking applications are exactly alike, which is why each Polaris Vega model has distinct technical specifications and customization options. Add a full library of API commands, and near-countless rigid body and tool design possibilities and every Polaris Vega is as unique as the OEM’s surgical navigation system and application.
Polaris Vega® ST
With a frame rate of 60 Hz, volumetric accuracy to 0.12 mm, and data streaming via Ethernet connectivity, this versatile optical tracker can be integrated into a wide range of surgical navigation solutions.

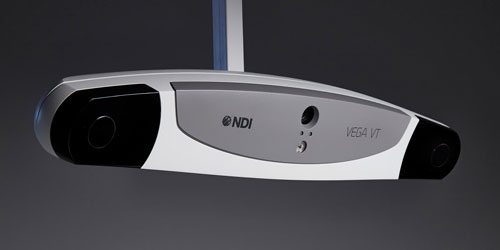

Polaris Vega® VT
With HD video and IR tracking capabilities providing a live video stream of tracked surgical instruments, this specialized optical tracker can be used in a variety of augmented reality applications.
Polaris Vega® XT UPGRADED
With a volumetric accuracy of up to 0.12 RMS, latency of less than three milliseconds, and frame rates as high as 400 Hz, our premier optical tracker can be used with a variety of robot-assisted surgical applications.
Polaris Vega Model Comparison
Accuracy
Polaris
Vega ST |
Polaris
Vega VT |
Polaris
Vega XT |
|
|---|---|---|---|
| Accuracy | |||
| Volumetric Accuracy RMS (Pyramid)1,2: 0.12 mm | ✔ | ✔ | ✔ |
| Volumetric Accuracy RMS (Extended Pyramid)1,2: 0.15 mm | ✔ | ✔ | ✔ |
| 95% Confidence Interval (Pyramid)1,2: 0.20 mm | ✔ | ✔ | ✔ |
| 95% Confidence Interval (Extended Pyramid)1,2: 0.30 mm | ✔ | ✔ | ✔ |
Performance
Polaris Vega ST | Polaris Vega VT | Polaris Vega XT | |
|---|---|---|---|
| Performance | |||
| Maximum Frame Rate: 60 Hz | ✔ | ✔ | |
| Maximum Frame Rate: 400 Hz | ✔ | ||
| Low Latency: < 3 ms (typical) | ✔ | ||
| Standard Latency: < 16 ms (typical) | ✔ | ✔ | |
| Reduced Data Noise | ✔ |
Data Communication / Mechanical
Polaris Vega ST | Polaris Vega VT | Polaris Vega XT | |
|---|---|---|---|
| Data Communication | |||
| Ethernet Connectivity | ✔ | ✔ | ✔ |
| Mechanical | |||
| Dimensions: 591 mm x 103 mm x 106 mm | ✔ | ✔ | ✔ |
| Weight: 1.7 kg | ✔ | ✔ | ✔ |
| Weight with Radiation Hardening: 2.15 kg | ✔ |
OEM Custom Branding / Enhanced Functionality
Polaris
Vega ST |
Polaris
Vega VT |
Polaris
Vega XT |
|
|---|---|---|---|
| OEM Custom Branding | |||
| Custom Bezel Available | ✔ | ✔ | ✔ |
| Enhanced Functionality | |||
| HD Video Camera | ✔ | ||
| Optional Radiation Hardening | ✔ | ||
| Optional Extended Pyramid | ✔ | ✔ | ✔ |
| Optional Positioning Laser | ✔ | ✔ | ✔ |
Download Our 13-Page Guide To Learn How Optical Tracking:
- Helps to visualize and accurately track instruments within a large volume.
- Enables OEM solution providers to integrate tracking into their workflows to improve patient outcomes.
- Supports integration with robotic-assisted systems and augmented reality applications.
Legal Disclaimer
NDI tracking and measurement products are general metrology components that can be integrated into customer products, research experiments, and/or as components of medical devices that require precision measurement and tracking. While NDI components and technology can be integrated into original equipment manufacturer (OEM) medical devices, they are not specifically intended for a given application and, as such, have not been developed or manufactured in accordance with medical device standards. It remains the responsibility of the OEM customer or end-user to determine and test the suitability of NDI components and technology for their intended use, including performing any required ethics approval, verification, and validation required to demonstrate suitability and compliance. System-level testing, certification, and validation are the responsibility of the original equipment manufacturer or the applicable end-user and should be completed prior to the use of NDI products or technologies in any application.
1 Based on a single marker stepped through more than 900 positions throughout the measurement volume using the mean of 30 samples at each position at 20°C.
2 Accuracy stated based on overall volume.
